SCADA System

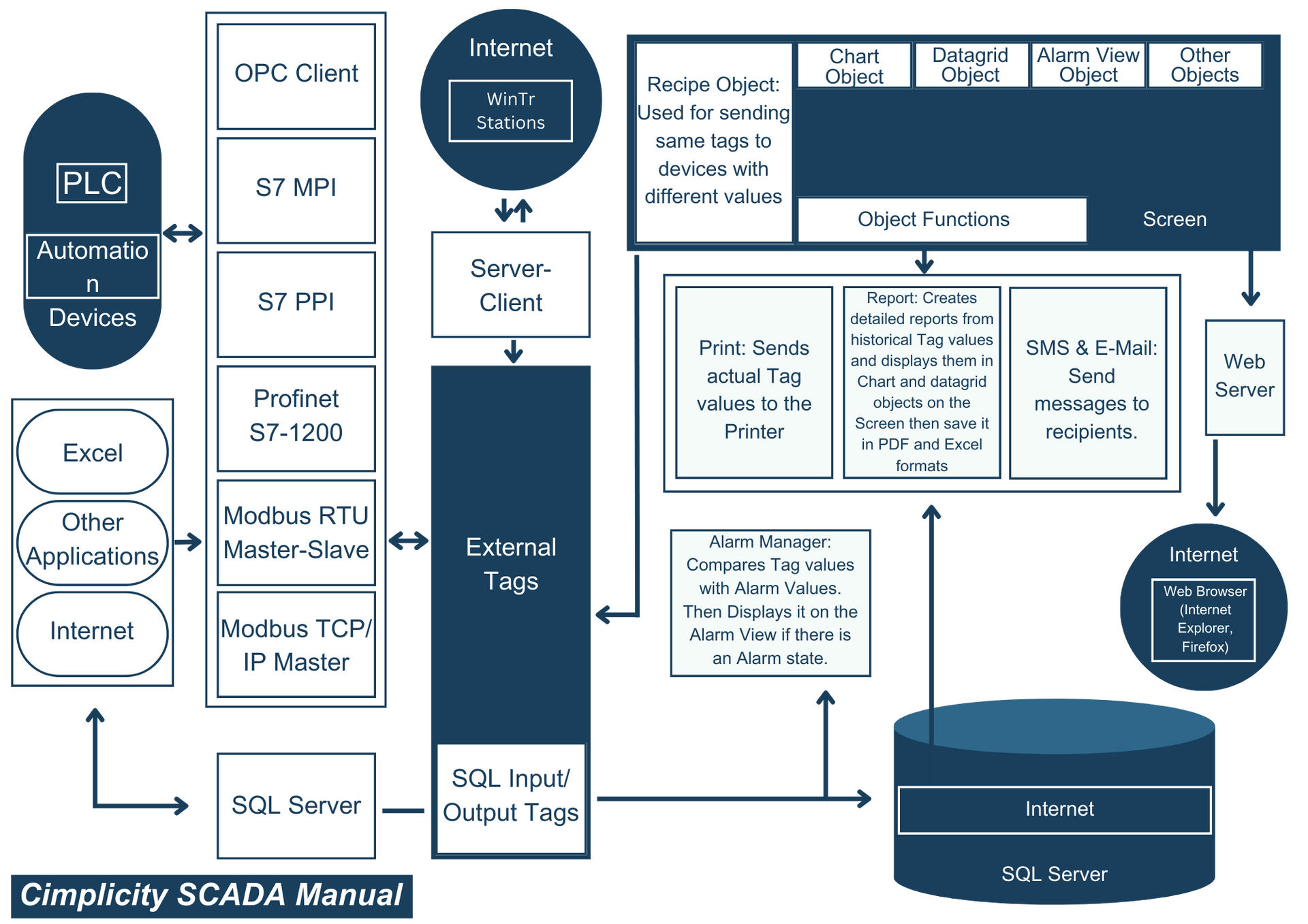

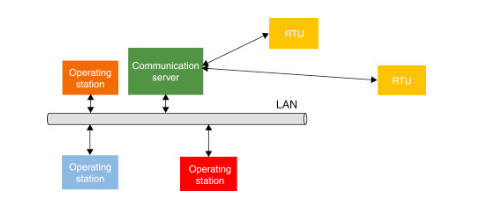

1. Distributed SCADA Systems:

Distributed SCADA systems are designed to operate across multiple geographical locations. They consist of a central control center connected to remote substations or sites. These remote sites collect data and perform local control operations, while the central control center gathers, processes, and presents the data from all the sites. Distributed SCADA systems are commonly used in industries like energy and utilities, where operations are spread over a wide area.

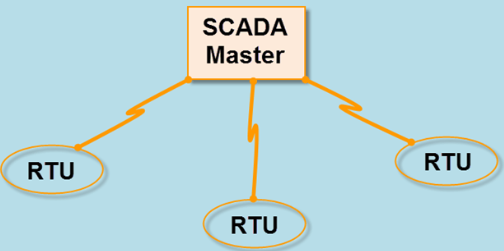

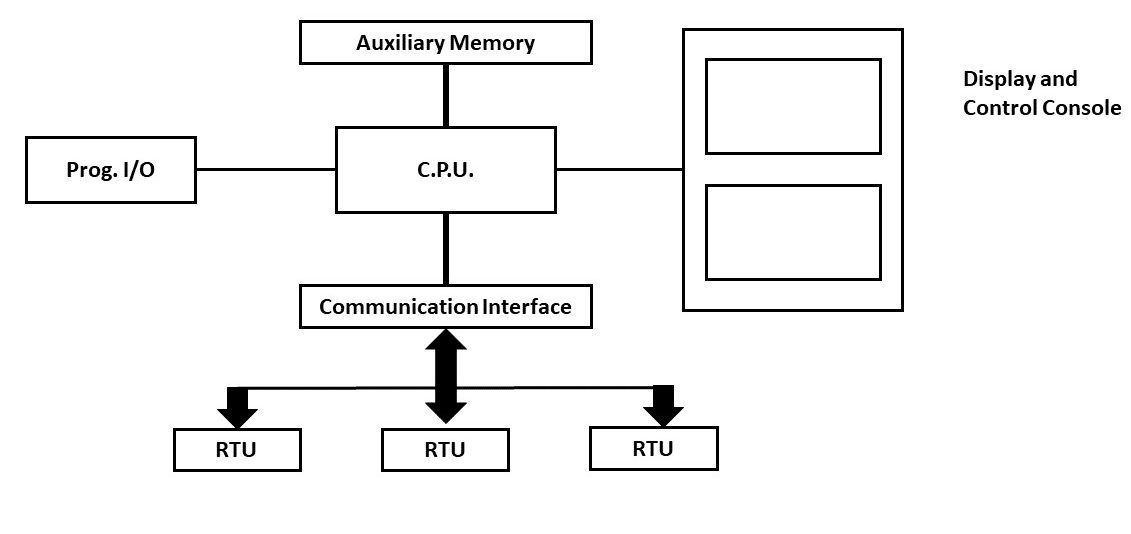

2. Centralized SCADA Systems:

Centralized SCADA systems have a single central control center that manages and controls all processes and devices. This type of system is more suitable for applications where operations are concentrated in a single location or facility. Centralized SCADA systems are often used in building management, where all systems within a building are monitored and controlled from a central point.

3. Web-Based SCADA Systems:

Web-based SCADA systems utilize web technologies to provide remote access to SCADA functionalities via web browsers. This type of system allows authorized users to access real-time data and control processes from any location with an internet connection. Web-based SCADA systems are particularly useful for applications where operators or managers need to monitor and manage processes remotely, such as in the case of remote industrial sites or off-site management.

4. Mobile SCADA Systems:

Mobile SCADA systems extend the capabilities of SCADA to mobile devices such as smartphones and tablets. They enable authorized users to access real-time data, receive alerts, and control processes using mobile apps. Mobile SCADA systems are beneficial for operators and managers who need to stay informed and make quick decisions while on the move. They are especially useful for industries like utilities, where field technicians can use mobile devices to monitor and troubleshoot equipment.

1. Energy and Utilities:

Power Generation: SCADA systems are used to monitor and control power generation facilities such as power plants, substations, and renewable energy installations. They help manage the generation, transmission, and distribution of electricity.

Water and Wastewater: SCADA systems are utilized to monitor water treatment and distribution systems, as well as wastewater treatment facilities. They ensure efficient water supply, quality control, and regulatory compliance.

2. Manufacturing and Industrial Processes:

Manufacturing Plants: SCADA systems are used in manufacturing to monitor and control production lines, machinery, and equipment. They help optimize production processes, track performance, and reduce downtime.

Chemical and Petrochemical: SCADA systems are employed to oversee and regulate complex chemical processes, ensuring safety and adherence to regulations in hazardous environments.

3. Transportation and Infrastructure:

Traffic Control: SCADA systems can be used to manage traffic signals, monitor road conditions, and control variable message signs, contributing to efficient traffic flow and management.

Railway Systems: SCADA systems help monitor railway tracks, switches, and signaling systems. They play a role in ensuring safe and reliable train operations.

4. Oil and Gas:

Pipeline Monitoring: SCADA systems are crucial for monitoring and controlling pipelines used in transporting oil and gas over long distances. They help detect leaks, and pressure changes, and ensure the integrity of the pipeline.

5. Building Management Systems:

Commercial Buildings: SCADA systems can be used in large buildings to manage HVAC (heating, ventilation, and air conditioning), lighting, security, and other systems for energy efficiency and occupant comfort.

6. Agriculture:

Precision Agriculture: SCADA systems can monitor and control various agricultural processes such as irrigation, temperature control in greenhouses, and livestock feeding, helping improve yields and resource management.

7. Renewable Energy:

Solar and Wind Farms: SCADA systems are used in renewable energy installations to monitor the performance of solar panels and wind turbines, optimizing energy production and detecting faults.

8. Telecommunications:

Network Management: SCADA systems can monitor and manage telecommunications infrastructure, including cell towers, base stations, and data centers, ensuring efficient communication services.

Here are a few well-regarded SCADA certification options:

Certified SCADA Security Architect (CSSA):

Offered by the International Society of Automation (ISA), this certification focuses on the security aspects of SCADA systems. It covers topics such as risk assessment, network security, security policies, and incident response.

Certified SCADA Professional (CSP):

The CSP certification, offered by the Instrumentation, Systems, and Automation Society (ISA), covers a wide range of SCADA-related topics, including system architecture, design, implementation, and maintenance.

Certified Automation Professional (CAP):

While not solely focused on SCADA, the CAP certification covers a broad range of automation topics, including SCADA systems. Offered by ISA, it's a comprehensive certification suitable for professionals involved in various aspects of automation.

Certified Control System Technician (CCST):

Offered by the International Society of Automation (ISA), the CCST certification covers a range of skills required to maintain and troubleshoot industrial control systems, including SCADA systems.

Siemens Certified SIMATIC SCADA System Engineer:

Siemens offers certification programs focused on their SCADA systems. These programs cover topics related to the engineering, configuration, and maintenance of SCADA systems.

Wonderware Certified System Integrator (WCSI):

Wonderware offers certification programs for professionals who work with their SCADA software. These programs cover topics such as system architecture, implementation, and troubleshooting.

GE Digital Certified Proficiency in iFIX:

GE Digital offers certification programs for their iFIX SCADA software. These programs cover topics related to system design, configuration, and maintenance.

1. Central Server: The central server is the heart of the SCADA system. It's a powerful computer that hosts the SCADA software and manages the overall operation of the system. The central server is responsible for processing data, storing historical information, managing user access, and coordinating communication with various components.
2. Central Computer: This refers to the computer that is directly connected to the central server and serves as the interface for system administrators and engineers to configure and monitor the SCADA system. It allows them to set up user privileges, configure data visualization, and manage the overall system settings.
3. Supervisory Computer: The supervisory computer is used by operators to monitor and control industrial processes. It's equipped with HMI (Human-Machine Interface) software that provides real-time data visualization, alarms, trends, and control buttons. Operators use the supervisory computer to observe the process status and make necessary adjustments.
4. Local Server: The local server can be positioned closer to the actual industrial site and acts as an intermediate data processing unit. It collects data from PLCs, RTUs, sensors, and other field devices within a local area. This data is then sent to the central server for further analysis and monitoring.
5. Cloud Server: The cloud server is an optional component that allows data from the SCADA system to be stored and processed in a cloud-based infrastructure. This offers benefits like remote access, scalability, and disaster recovery. The cloud server can host applications for advanced analytics and long-term data storage.
6. Coordinating Computer: The coordinating computer manages communication and coordination between various components of the SCADA system. It ensures data exchange between PLCs, RTUs, sensors, actuators, and the central server. The coordinating computer uses communication protocols to gather data and transmit control commands.
7. PLC (Programmable Logic Controller): PLCs are industrial control devices that manage specific processes. They receive inputs from sensors, process the information, and send outputs to actuators. PLCs are capable of executing control logic autonomously and can communicate with the SCADA system to receive commands and transmit data.
8. RTU (Remote Terminal Unit): RTUs are similar to PLCs but are often used in remote locations where communication might be more challenging. RTUs gather data from sensors and field devices, and they can execute simple control tasks. They transmit this data to the SCADA system for monitoring and decision-making.
9. Sensors: Sensors are devices that detect and measure physical parameters such as temperature, pressure, level, or flow within the industrial process. They convert these measurements into electrical signals that can be understood by the SCADA system.
10. Actuators: Actuators are devices responsible for carrying out control commands. They receive signals from the SCADA system and change the physical state of the industrial process. Examples include valves, pumps, motors, and switches.

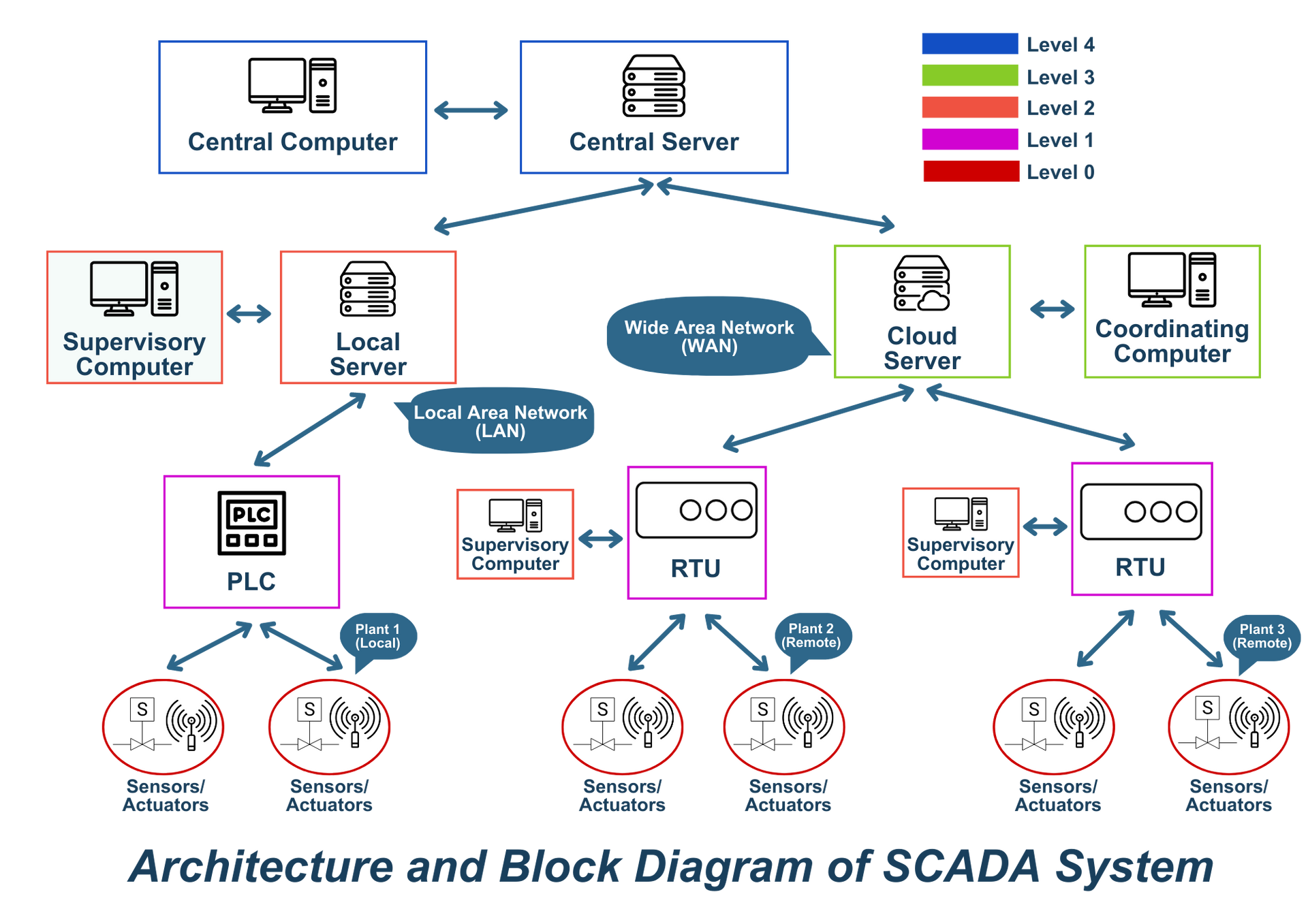

In this SCADA block diagram, data flows from sensors and field devices through PLCs and RTUs to the central server, where it's processed, visualized, and controlled. The supervisory computer allows operators to monitor and interact with the processes in real-time. The local server and cloud server offer data storage and analytics options, while the coordinating computer ensures seamless communication between all components. This interconnected system enables efficient management, control, and optimization of industrial processes.

Certainly, here are a few more examples of Human-Machine Interfaces (HMIs) in various contexts:

Smartphone Touchscreen:

The touchscreen interface on a smartphone serves as a primary HMI. Users interact with apps, settings, and functions through touch gestures, such as tapping, swiping, and pinching.

ATM (Automated Teller Machine):

ATMs have a user-friendly interface with a keypad for entering PINs, buttons for selecting transaction types, and a display screen that guides users through the transaction process.

Industrial Control Panel:

In manufacturing settings, operators use control panels with buttons, switches, and indicators to monitor and control machinery, adjusting parameters like speed, temperature, and pressure.

Aircraft Cockpit Display:

Aircraft cockpit HMIs include various digital displays, buttons, knobs, and touchscreens that pilots use to manage flight systems, navigation, communication, and more.

Car Infotainment System:

Modern car dashboards feature touchscreens and physical controls for managing entertainment, navigation, climate control, and vehicle settings.

Medical Equipment Interface:

Medical devices like MRI machines and patient monitors have interfaces that medical professionals use to configure scans, monitor vital signs, and adjust settings.

Gaming Console Controller:

Game controllers for consoles include buttons, triggers, analog sticks, and touch-sensitive areas that gamers use to control characters and interact with games.

Smart Home Hub:

Smart home systems often have central hubs with interfaces allowing users to control lights, thermostats, security cameras, and more through a single interface.

Elevator Control Panel:

Elevator HMIs in buildings provide buttons for selecting floors and indicators to show the current position of the elevator.

Human-Machine Interface (HMI) plays a crucial role in Supervisory Control and Data Acquisition (SCADA) systems. SCADA systems are used in various industries to monitor, control, and manage complex processes and systems. The HMI component in a SCADA system provides a visual interface through which operators and engineers can interact with the underlying processes and data. Here's how HMI is used in SCADA:

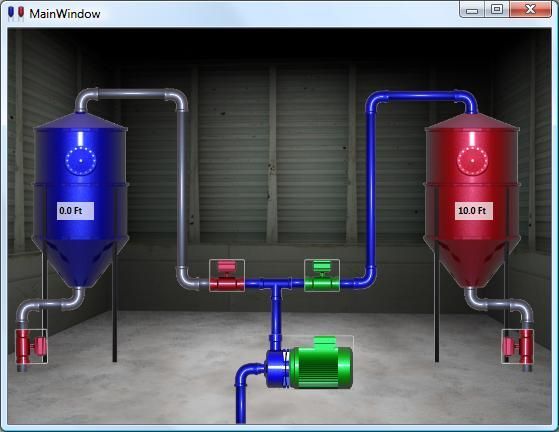

1. Visualization: The primary function of the HMI in a SCADA system is to provide a graphical representation of the processes being monitored. It displays real-time data, status indicators, charts, graphs, and other visual elements that allow operators to quickly understand the state of the system.

2. Real-Time Data Display: The HMI displays real-time data collected from sensors, instruments, and control devices throughout the monitored system. This data might include temperature, pressure, flow rates, voltage levels, and more. Operators can observe these values and detect anomalies or trends that might indicate a problem or an opportunity for optimization.

3. Alarm Management: The HMI in a SCADA system is equipped to handle alarms and notifications. When certain conditions or thresholds are met, alarms are triggered, and the HMI displays them prominently. This helps operators identify critical situations and take immediate action to address them.

4. Process Control: Operators can use the HMI to interact with the system's components and processes. They can start or stop equipment, adjust setpoints, and change operational parameters directly from the interface. This allows for manual control or intervention when necessary.

5. Historical Data Analysis: The HMI often provides access to historical data, allowing operators and engineers to review past performance and trends. This data is valuable for troubleshooting, optimization, and making informed decisions for process improvements.

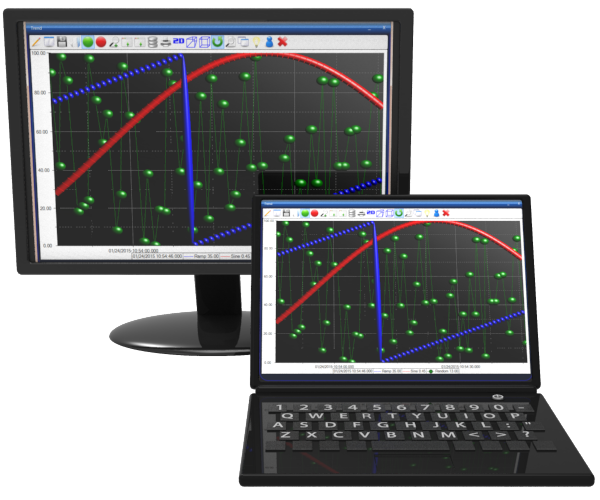

6. Trending and Reporting: The HMI in a SCADA system can display trends over time using graphical representations like line charts, bar graphs, and pie charts. These trends help operators identify patterns and variations in the data. The HMI might also generate reports summarizing system performance and operational data for management and regulatory purposes.

7. Remote Access: In some cases, the HMI might offer remote access capabilities, enabling authorized personnel to monitor and control the system from remote locations. This is especially useful for systems spread across multiple sites or in situations where on-site presence is not always possible.

8. User Authentication and Security: The HMI incorporates user authentication and access control mechanisms to ensure that only authorized personnel can access and control the system. Security features are essential to protect critical processes from unauthorized access or tampering.

Overall, the HMI in a SCADA system acts as the bridge between the underlying hardware and software components and the human operators. It enables efficient monitoring, control, and decision-making, enhancing the reliability and efficiency of industrial processes across various industries, such as manufacturing, energy, water treatment, and transportation.

HMI (Human-Machine Interface) and SCADA (Supervisory Control and Data Acquisition) software are essential tools used in industrial automation and control systems to monitor, control, and manage various processes and equipment in real time. They are used in industries such as manufacturing, energy, transportation, water treatment, and more.

HMI Software:

HMI software is designed to provide a visual representation of the processes and equipment being controlled. It allows operators and engineers to interact with the system using graphical user interfaces (GUIs) that display real-time data, alarms, and control options. HMI software often includes features such as:

1. Graphical displays: Visual representation of the plant or process with real-time data updates.
2. Alarms and notifications: Alerts for abnormal conditions or events.
3. Trending: Graphs and historical data visualization for analysis.
4. User authentication and access control: Security features to manage user permissions.
5. Data logging: Recording of data for analysis and reporting.
6. Animation and visualization tools: Enhancements for better user understanding.
7. Remote access: Ability to monitor and control systems from remote locations.

Difference Between PLC and SCADA

PLC (Programmable Logic Controller) and SCADA (Supervisory Control and Data Acquisition) are two distinct components often used in industrial automation and control systems. While they are related and often work together, they serve different functions within an industrial environment. Here's a breakdown of the differences between PLC and SCADA:

PLC (Programmable Logic Controller):



1. Function: PLCs are specialized computers designed to control industrial processes and machinery. They execute logic-based tasks, process inputs from sensors, and provide outputs to control various devices such as motors, valves, and relays.
2. Programming: PLCs are programmed using ladder logic or other programming languages specifically tailored for industrial control. This programming defines the logic and behavior of the controller.
3. Real-time Control: PLCs are optimized for real-time control tasks, making them suitable for applications where precise timing and rapid response are crucial.
4. Hardware: PLCs are available in various sizes and configurations to match the complexity of the process they are controlling. They typically have digital and analog input/output modules to interface with sensors and actuators.
5. Scalability: PLC systems can be easily scaled by adding more PLCs or expanding the existing hardware to accommodate larger and more complex automation systems.

SCADA (Supervisory Control and Data Acquisition):

1. Function: SCADA systems are software applications that provide a visual interface for monitoring and controlling industrial processes from a central location. They gather real-time data from various devices and sensors and provide operators with a graphical representation of the process.
2. Visualization: SCADA systems display real-time data in the form of graphics, charts, and alarms. They allow operators to monitor the status of the entire system and intervene if needed.
3. Data Collection: SCADA systems collect and store historical data for analysis and reporting. This data can help identify trends, optimize processes, and improve efficiency.
4. Remote Monitoring and Control: SCADA systems enable remote monitoring and control of industrial processes, which is particularly useful for large-scale or geographically dispersed systems.
5. Integration: SCADA systems can integrate with various data sources, including PLCs, sensors, databases, and other software systems, to provide a comprehensive overview of the entire process.
6. HMI (Human-Machine Interface): The graphical interface provided by SCADA systems is often referred to as the HMI. It allows operators to interact with the system, acknowledge alarms, and initiate control actions.

In summary, PLCs are the hardware-based controllers responsible for executing control logic and interacting with devices in an industrial process. SCADA systems, on the other hand, are software-based tools that provide a visual interface for monitoring, data collection, and remote control of industrial processes. Together, they form a comprehensive solution for automating and managing complex industrial operations.

Udemy: Udemy is a popular online learning platform that offers a variety of PLC and SCADA courses. You can find courses suitable for beginners as well as more advanced users. Look for courses with good ratings and reviews to ensure their quality.

Coursera: Coursera collaborates with universities and organizations to provide high-quality online courses. You might find courses related to industrial automation, PLC, and SCADA systems from reputable institutions.

LinkedIn Learning (formerly Lynda.com): LinkedIn Learning offers a range of courses on industrial automation topics, including PLC and SCADA systems. These courses often come with high production values and experienced instructors.

Online Industrial Automation Training Providers: There are specialized online platforms that focus on industrial automation training. Examples include:

RealPars: They offer various courses on industrial automation, including PLC and SCADA topics.

Automation Training: This platform specializes in providing online training for PLC, HMI, and SCADA systems.

YouTube: There are many YouTube channels dedicated to providing tutorials on PLC and SCADA systems. Channels like "TheAutomationSchool" and "RealPars" offer educational videos on these topics.

Local Technical Institutes and Universities: Sometimes, local technical institutes or universities offer online courses or webinars on industrial automation, including PLC and SCADA. Check with institutions in your region.

ISA (International Society of Automation): ISA offers a wide range of resources and training opportunities related to industrial automation, including PLC and SCADA systems.

1. Scope and Scale:

• SCADA (Supervisory Control and Data Acquisition): SCADA systems are designed to monitor and control large-scale processes and distributed systems. They are typically used for managing geographically dispersed facilities, such as utility networks, water treatment plants, and oil and gas pipelines.
• DCS (Distributed Control System): DCS systems are focused on controlling processes within a single plant or facility. They are used to manage various production processes, such as those found in manufacturing, chemical processing, and power generation plants.

2. Control Philosophy:

• SCADA: SCADA systems primarily emphasize supervisory control, real-time monitoring, and data acquisition. They provide operators with an overview of the system's status and allow them to make high-level decisions.
• DCS: DCS systems are more oriented toward process control, focusing on regulating and optimizing individual processes within a facility. They often include advanced control algorithms to maintain precise control over variables like temperature, pressure, and flow.

3. Architecture:

• SCADA: SCADA systems often have a client-server architecture. They gather data from remote field devices and sensors, and this data is then transmitted to a central supervisory system where operators can visualize and control the processes.
• DCS: DCS systems use a distributed architecture where controllers are placed strategically throughout the facility, close to the processes they control. This allows for faster response times and reduces the potential impact of communication failures.

4. Scalability:

• SCADA: SCADA systems are highly scalable and can accommodate a large number of remote sites, making them suitable for managing extensive infrastructure networks.
• DCS: DCS systems are designed for scalability within a single facility. As the needs of the facility grow, more controllers and modules can be added to the existing system.

5. Integration and Connectivity:

• SCADA: SCADA systems often integrate with different types of equipment and systems, including various communication protocols and data sources, making them suitable for diverse applications.
• DCS: DCS systems focus on integration within a specific facility, usually involving the connection of various field devices and instruments within the same industrial process.

6. Alarming and Monitoring:

• SCADA: SCADA systems provide advanced alarming and remote monitoring capabilities to identify and respond to critical events across distributed systems.
• DCS: DCS systems offer real-time monitoring and more precise alarm handling for the processes they control within a single facility.



In summary, while both SCADA and DCS are used in industrial automation and control, SCADA is better suited for supervisory control and monitoring of geographically dispersed systems, whereas DCS is designed to optimize and control individual processes within a single facility. The choice between the two depends on the specific requirements and scope of the application.

PLC HMI programming involves creating the logic and interface necessary for a Human-Machine Interface (HMI) to interact with a Programmable Logic Controller (PLC). This integration allows operators and engineers to monitor and control industrial processes using a user-friendly graphical interface. Here's a general outline of the steps involved in PLC HMI programming:

1. Define Project Requirements:

Clearly understand the requirements of the project, including the processes to be controlled, the data to be monitored, and the user interactions needed through the HMI.

2. Select Software Tools:

Choose the appropriate software tools for both PLC programming and HMI design. Popular choices for PLC programming include Siemens TIA Portal, Allen-Bradley Studio 5000, and Mitsubishi GX Works. For HMI design, software like FactoryTalk View (Rockwell), WinCC (Siemens), or Wonderware InTouch might be used.

3. PLC Programming:

Develop the logic for the PLC that controls the industrial processes. This involves writing ladder logic, structured text, or other programming languages supported by your PLC. The PLC logic will read inputs from sensors, execute control algorithms, and generate outputs to control actuators and devices.

4. Configure PLC-HMI Communication:

Set up communication protocols between the PLC and the HMI software. Most HMIs offer communication drivers that allow them to communicate with various PLC brands and models. Configure the data exchange parameters like data addresses, communication type (e.g., Ethernet, serial), and polling rates.

5. Design HMI Interface:

Create the graphical user interface on the HMI software. This involves designing screens, arranging visual elements (buttons, indicators, graphs), and mapping them to the corresponding PLC data points. Consider the layout, color schemes, and organization for a user-friendly experience.

6. Link HMI Elements to PLC Logic:

Associate the HMI elements with the PLC logic. Link buttons to control outputs, display sensor data on indicators or graphs, and map alarms to appropriate events. This mapping enables bidirectional communication between the HMI and PLC.

7. Implement User Interactions:

Define how users interact with the HMI. Add navigation buttons, pop-up screens, and touch gestures as needed. Implement user authentication and access levels if security is a concern.

8. Testing and Debugging:

Test the entire system thoroughly. Verify that the HMI accurately displays real-time data and responds correctly to user inputs. Test different scenarios and edge cases to ensure the system operates as intended. Debug and fix any issues that arise during testing.

9. Documentation:

Create documentation that outlines the HMI layout, navigation paths, and explanation of controls. Include any setup instructions for communication between the HMI and the PLC.

10. Training and Deployment:

Provide training to operators and engineers on how to use the HMI effectively. Once the testing and training are complete, deploy the HMI-PLC system in the actual industrial environment.

Remember that PLC HMI programming can vary based on the specific PLC and HMI software you're using, as well as the requirements of your industrial application. Always refer to the documentation and resources provided by the software vendors for detailed guidance on programming and integration.
